eGlass Picket™ Assembly Demonstration
To Install an 800 Series Top Rail Stair Rail: Attach Top Rail Infill to Hinged Rail Connecting Block for Stairs. Snap 800 Series Top Rail to Top Rail Infill. Cut away view of completed assembly.

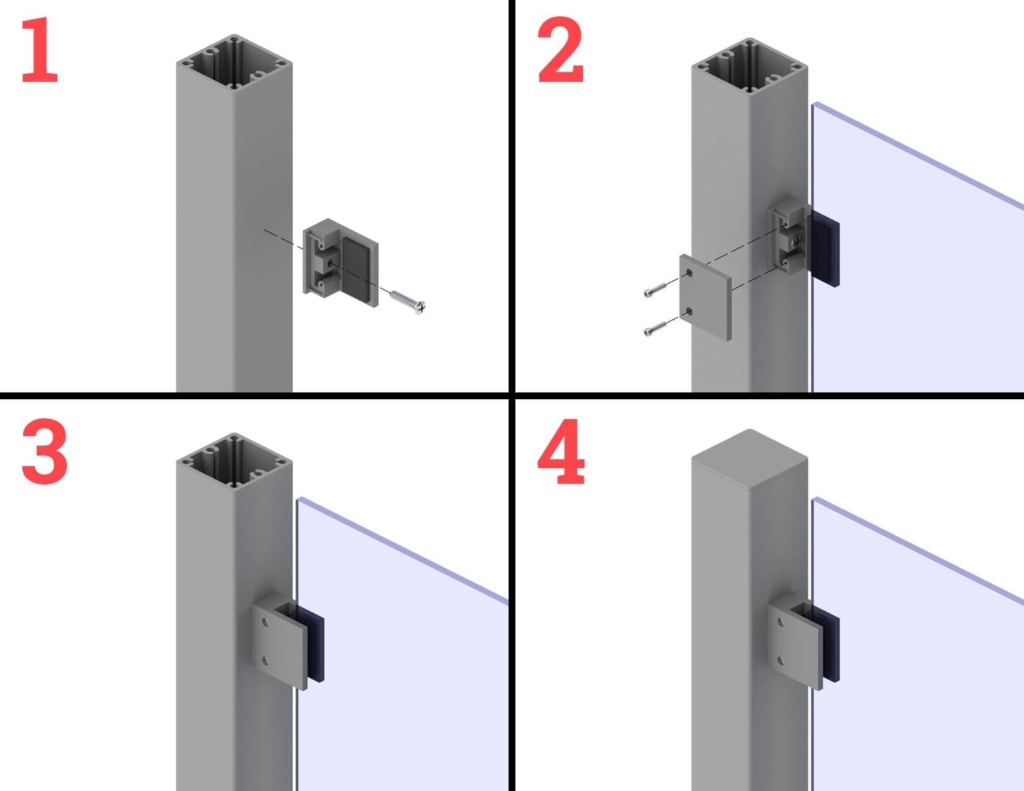

Read MoreeGlass Vision™ Assembly Demonstration
To Install an eGlass Vision™ Clamp System: Attach the male part of the clamp (Round Clamp or Square Clamp) to a post. Attach the female part of the clamp to the male part of the clamp with the glass panel sandwiched in between. Tighten the two clamp pieces together to hold glass securely. Snap post cap onto…

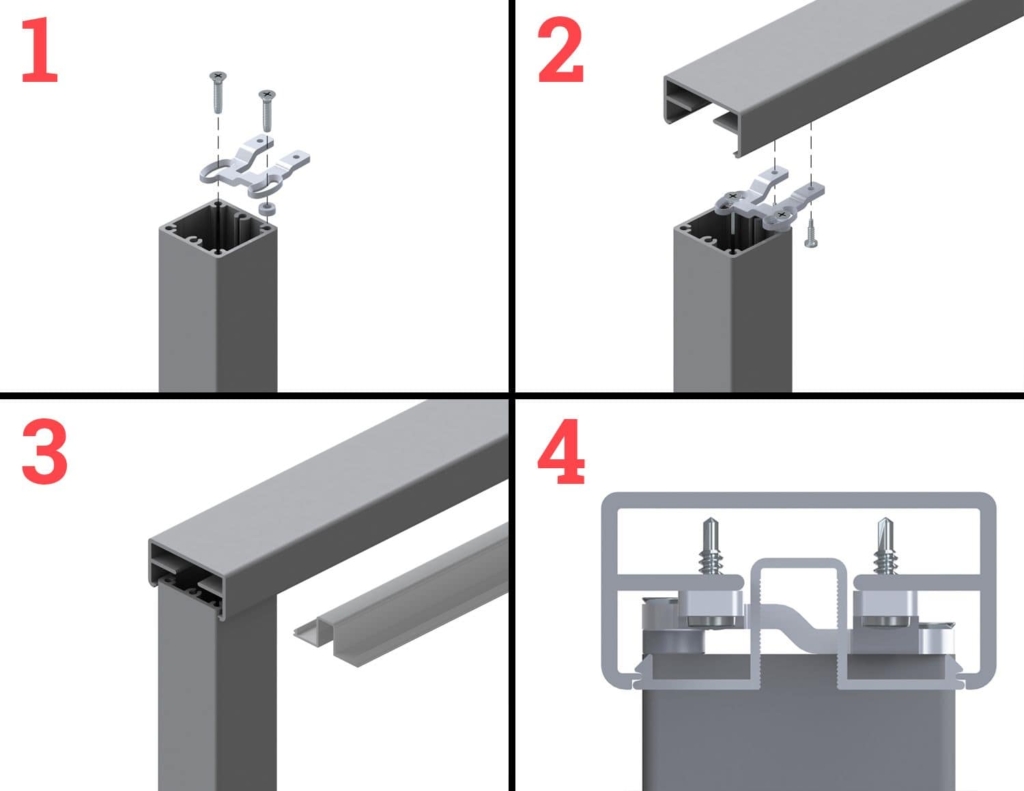

Read MoreeGlass Solid™ Assembly Demonstration
To Install an 810 Series Top Rail: Attach Top Rail Mounting Bracket to a post. Attach 810 Series Top Rail to the Top Rail Mounting Bracket. Snap Top Rail Infill to the 810 Series Top Rail. Cut away of completed assembly.

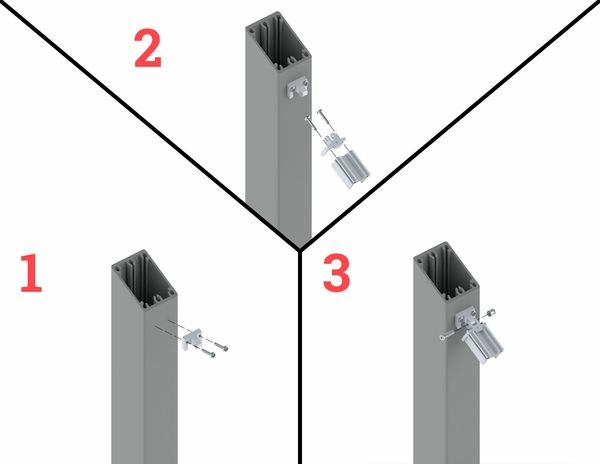

Read MoreGlass Railing Stair Bracket Installation
To Install a Hinged Rail Connecting Block for Stairs: Attach Hinged Rail Connecting Block for Stairs Bracket Part B to post. Attach Hinged Rail Connecting Block for Stairs Bracket Part A to Rail Connecting Block. Attach completed bracket Part A assembly to bracket Part B.

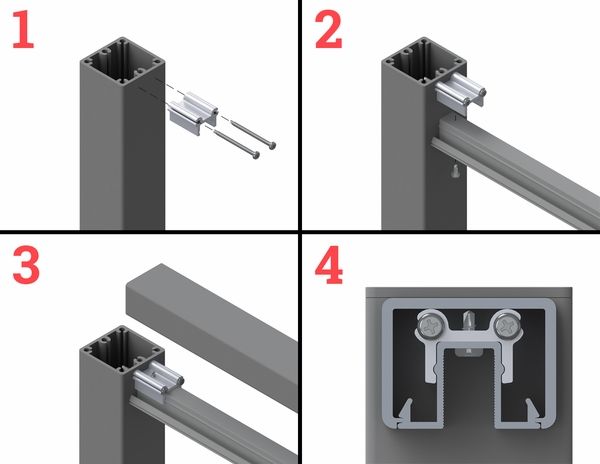

Read MoreeGlass Element™ Assembly Demonstration
To Install an 800 Series Top Rail: Attach Rail Connecting Block (RCB) to a post. Attach Top Rail Infill to the RCB. Snap 800 Series Top Rail to the Top Rail Infill. Cut away view of completed assembly.
Read More
